CAN LAMBDA SENSOR KIT
The CAN-Lambda Sensor kit's ability to measure the proportion of oxygen in exhaust gases makes it a essential tool for accurately tuning fuel mixtures as well as allowing your ECU to make tuning adjustments on the fly.
Being fully digital the CAN Lambda's powerful LSU 4.9 sensor will eliminate any loss of signal, risk's, delays, or errors that analog sensors have. The CAN-Lambda sensor never requires free air calibration.
Box Contents
- CAN Lambda device
- Bosch LSU4.9 Sensor

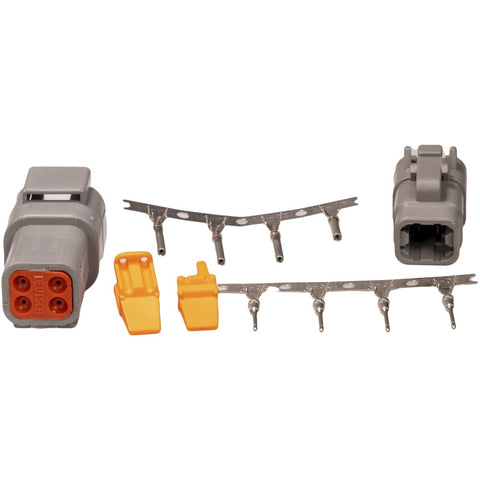

- Deutsch 4-Way Connector Kit
- O2 Bung and Plug
- 2 Large Stickers
- 2 Small Stickers
- Quick Start Guide
CANJST4
Required to add CAN communications & power to recently released G4X Plugin ECU’s which have the new 4 Pin powered CAN connector (not the older 5pin CAN connector). Plugs directly into the socket on the ECU PCB, provides CAN and a protected 12V supply to allow easy connection of CAN accessories.
Suitable for powering a CAN Lambda, Dash, EGT amplifier or other similar low powered CAN devices which have a total continuous current draw of <3A.
Note: there are two versions of this cable; both function the same.
Compatible Plug-Ins:
- 219-4000 - Plug-In ECU G4X Mazda RX7 Series 7-8 (V1.4 onwards)
- 228-4000 - Plug-In ECU G4X Subaru WRX V5-6
- 233-4000 - Plug-In ECU G4X Honda S2000 AP1
- 235-4000 - Plug-In ECU G4X Toyota JZX90X
- 237-4000 - Plug-In ECU G4X Honda HC20X Type-R DC5/RSX
- 238-4000 - Plug-In ECU G4X Subaru WRX11
- 239-4000 - Plug-In ECU G4X MX5NB2X
- 240-4000 - Plug-In ECU G4X MX5NB1X
Specs
DTM4 Male to JST4. 12V and GND Terminated to JST4. Length 300mm
DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
TUNING CABLE
Link CAN to USB Tuning Cable. Used to connect the ECU to a computer via USB. A CAN to Serial cable is also available.
PCB CABLE
Required to add CAN/Serial communications to G4+/G4X Plugin ECU’s. Plugs directly into ECU PCB header. Use the Link CANF connector (purchased separately) to connect.
Compatible with:
- Link G4X Storm
- Link G4X and G4+ Fury
- Link G4X and G4+ Xtreme
- Link G4+ Thunder
- All Link G4+ and G4X Plugin ECUs
- Link G4+ Storm Black/Blue/Silver
- Any older Link ECU utilising the Link 6 Pin CAN connector
- Vipec V88 and i44
- Link G3
CAN F PLUG
Field Installable CAN Plug - Can be used to wire in to the 6 pin CAN port on Link G4/G4+/G4X ECUs that have a round 6 pin CAN communication port. Requires soldering for assembly.
GPS
Add-on GPS module for the MXS and MXG Strada Dashes. 1.3m cable length.
Features:
Sample lap and split times as well as speed, position and acceleration - all the information needed for engine tuning as well as for improving your driving technique. Supports more than 2000 tracks worldwide.
Easy to set-up and review data using Race Studio 3
- Connects to dual satellites for redundancy and precision
- Simple, plug and play connection to Strada MXS & MXG Dashes
- A GPS module also provides the dash with a speed signal. This can be particularly useful for applications where wheel speeds are not available or utilized, such as boats.
Specifications
- Dimensions: 64.8 x 53.2 x 19.7 mm, Weight: 60.5 g
- You do not need to configure anything before going to the track: GPS09 will do it all by itself.
- Satellite signal is locked very rapidly. A few seconds after switch-on, the GPS09 is ready to operate
- An average of less than one meter tolerance, which means absolute precision in determining vehicle position in curves and when the finish line is very close to another track segment
PRESSURE SENDER
- Oil or Fuel pressure
- 10 Bar/150psi
- 1/8” NPT Thread
- Includes plug and pin kit
Technical Specs and Wiring
Up to 150 PSI above atmospheric pressure, cannot be used to read vacuum
0.5v = 0bar / 0PsiG
4.5v = 10 Bar / 145.03PsiG
XS EXPANSION LOOM
Want to add additional inputs/output to your Link Plugin ECU? Use the XS Loom. The Link XS Loom plugs into the expansion connector on all Link G4, G4+ and G4X plug-in ECUs. The number of extra inputs and outputs added by the XS Loom is dependent on the Plugin ECU. For specific details check the plug-in ECUs specifications.
Common applications include but are not limited to:
- Boost adjustment knob or switch
- Wide-band AFR/Lambda
- Oil Pressure Sensor
- Fuel Pressure Sensor
- Inlet Air Temperature (IAT) sensor
- Map switch (Different tunes available via toggle switch)
The XS Loom is 2.5m long and uses 20AWG wire.
LINK CAN GAUGE
The Link CAN Gauge is a compact OLED gauge for displaying real-time data from your Link ECU’s CAN stream. Supported parameters such as boost pressure, air/fuel ratio, coolant temperature, fuel pressure, ethanol content, etc. can be displayed.
The high contrast OLED display is bright for interior use and dims at night. Configure 1, 2, or 4 gauge layouts on up to 10 different pages. Pages can be scrolled through using the easy to access front buttons. Create customizable warning points, such as the coolant temperature being too high, which trigger a special warning screen and bright LED on the face of the gauge.
Easily customize your CAN Gauge to display the data you want to see with the free to download app (compatible with Android 4.4 or later and Apple iOS). The easy-to-use app works with your smartphone or tablet to wirelessly customize your gauge in minutes and is a lot easier than trying to configure your gauge with only buttons on the front!
Box Contents
1 x 52mm OLED CAN Gauge
1 x DTM4 CAN Gauge Connection Cable
1 x DTM4 Mating Connector Kit
1 x Mounting Bracket
1 x Quickstart Guide
2 x Link Stickers
